Simple & Easy Solution
for Bird Photography & Videography
Markins BV-Head is a ball head module designed for bird photography or videography.
It makes the ball rotate in one direction only. It also helps reduce vibration because the mass centers of the ball head, BV-Head and your equipment can easily be aligned on top of each other.
With this compact, easy-to-install and light weight BV-Head, we hope your photographic life more enjoyable.
- compact and portable head module for bird photography and videography

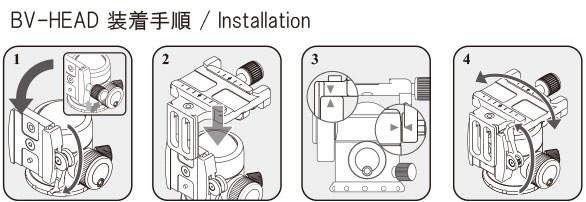

- easy installation and provide swift change between the two functions
- two types of heads in one package
- The new Quick-Turn knob opens or closed by one turn (Patent Pending)

→ Users Report of Koji Nakano
→ Users Report of Yoshiteru Takahashi

Specification
Product |
Markins Q20iQ-BK + BV-24 (with BS-22) Set |
Code |
BV24SET |
BV-HEAD |
|
Weight |
0.49lb (222 g) |
Size |
4.33 x 3.07 x 2.36in (110 x 78 x 60 mm) |
BV-STOPPER |
BS-22 |
Weight |
0.04lb (16 g) |
Size |
1.69 x 0.55 x 0.75 in (43 x 14 x 19 mm) |
Ball Head |
|
Maximum Load |
110lb (50 kg) |
Weight |
1.22lb (552 g) |
Ball Diameter |
1.89in (48mm) |
Base Diameter |
2.68in (68mm) |
Height |
4.02in (102mm) |
Friction Control |
Bi-Axial Progressive |
Maximum Torque |
220 lbf・in (250 kgf・cm) |
Camera Connection |
|
